| Brand Name : | CHILONG |
| Model Number : | CL-168A |
| Certification : | CE RoHS |
| Price : | 13.5USD/PC for order less than 1 CTN |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100,000pcs/month |
| Delivery Time : | 1-2 working days |
1. Capable of accepting all worldwide coins and tokens.
2. Intelligent CPU software control, and high accuracy.
3. Accept different kinds of coins at the same time.
4. Free to set up pulses output.
5. Prevent not only electric shock but also electromagnetic
interference.
6. Automatic self-test for problems.
7. Support coins with only one signal output.
CL-168 Series) is a multi-coin accepter selector , it accepts 1 to 8 kinds of different coins at the same time. This coin selector is widely used in Vending machines, Arcade Games, Message chairs, Washing Machines, and other self–management systems.
CL-1018 is mainly based on material, weight and size to identify coins.
We offer you professional sales and aftersales service , fast respond (Online phone and video service ) to solve any problems to save your time and your money.
We check & Test every single coin accepters before shipping out, to save your time at your end,
and make sure every set of product will work well, we support program updating service, if you need to add new coins we will help to set up new program for you. No need to change the device.no more cost.
A:Steps for altering the internal set value:
(Press the 5 and 7 buttons for about 3 seconds ,then the letter C will appear)
B:Now you can alter the set value:
1:When letter C appears (select quantity of different coins), press the 5 or 7 button to adjust the numerical valueyou need, and then press the SET button 1 after the setting is completed.
2:When letter “P” appears (the pulsed value for different coins), press the 5 or 7 to adjust numerical value you need, and then press the SET button 1 after the setting is completed.
Introductions:
C:The quantity of different coins you choose (ex.:you choose two coins CNY 0.5 and CNY 1 , C=2)
P : The pulsed value for different coins (ex:set CNY 0.5, 1→P1= 1 ,P2= 2 )
C:Set the sampling method for coin:
1, Press the SET button 1 and then the letter “A” will appear. Press the SET button again and then the letter “A1” will appear. Please put in the first 20 coins,then “A2” will appear.Put inanother kind of 20 coins.By that analogy, let all kinds of coins be set. You will see number “0” appears in 11 button then change into letter CL.

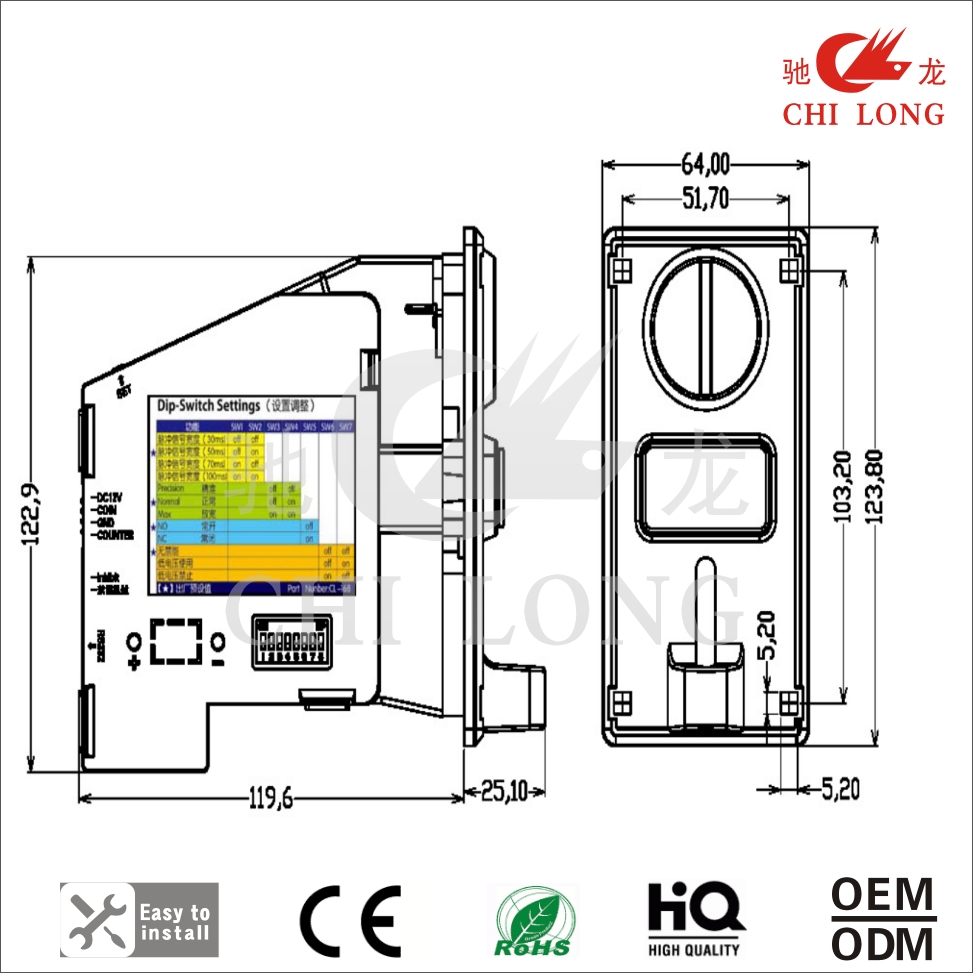

Instruction for position and directions for use of CL-168 type Coin Selector
Error Code Display (11):
E1:InductanceError
E2:No.1 Infrared Error
E3:No.2 Infrared Error
E4:No.3 Infrared Error
E5:No.4 Infrared Error
E6:No.5 Infrared Error
| NO. | Name. | Functioin |
| 1 | Setting Switch | select different kinds of coin and numerical value |
| 2 | 4pin Socket | x |
| 3 | Forbidden Socket | Forbidden signal DC5V~DC12V |
| 4 | RS232 | |
| 5 | Micro button | Condition display numerical value increase “+”“—” |
| 6 | DIP SWITCH | Functional Adjustment |
| 7 | Press-button for removal of coin blocked | Error Code Display Coin counter display |
|
|
